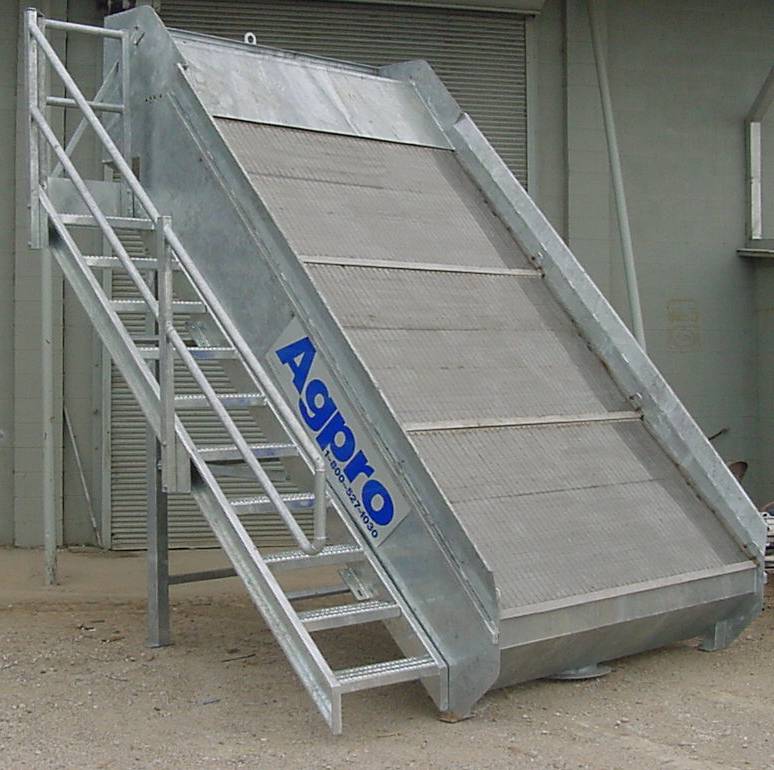

The Mark IV line of static screen separator units is designed to separate properly diluted and agitated liquid waste slurries delivered by pump. Split screen design affords both flexibility in selection of weir spacing and enhanced clean ability. Stainless steel construction includes body, rear entry chamber and screens. All units are provided with hot dip galvanized support structure, two access stairways and under screen spray nozzles to facilitate clean up.
| MODEL | CAPACITY (GPM) | INLET | OUTLET | PART NUMBER |
|---|---|---|---|---|
| 7250 | 200-500 | 6″ | 12″ | 852-00-085 |
| 72135 | 300-750 | 6″ | 12″ | 852-00-096 |
| 90135 | 700-1000 | 6″ | 12″ | 852-00-095 |
| MODEL | NOMINAL TOTAL SCREEN SIZE |
|---|---|
| 7250 | 6.0′ wide X 7.5′ long |
| 72135 | 6.0′ wide X 11.2′ long |
| 90135 | 7.5′ wide X 11.2′ long |
Individual applications and desired results will dictate screen spacing combinations.
- Stainless Steel Construction
- Galvanized Support Structure
- Leg extensions available for perfect height
